Linear Actuators
Electromechanical linear actuators provide precise and reliable linear motion for a variety of industrial applications. They can perform push, pull, lift, and tilt movements, offering a clean, efficient alternative to hydraulic or pneumatic systems. Ideal for applications requiring space efficiency, durability, and dependable operation, even under demanding environmental conditions, these actuators offer high positioning accuracy, repeatable performance, and low maintenance requirements.
Our portfolio includes various actuator concepts to meet specific performance and installation needs. Our "MINI" series features compact actuators designed for tight spaces. Electric cylinders offer high force ranges and flexible mounting options. Additionally, our 24V linear actuators complement the range for lower loads and simple motion tasks. Featuring multiple sizes, stroke lengths, drive configurations, and the ability to design custom solutions, we can provide the ideal actuator for your application.
Call us
E-mail usLinear actuator series "MINI"
The MINI series stands out for its exceptionally compact design within its performance class, making it the ideal choice wherever space is limited. Despite its small footprint, it delivers precise, repeatable motion and high lifting forces thanks to powerful hollow-shaft motors and a robust spindle drive system.
Built for long-term reliability, the actuators feature lifetime lubrication, corrosion-resistant materials, and IP65 protection, ensuring dependable operation even in harsh conditions. A range of standard configurations and options provides maximum versatility across diverse applications.
3 reasons why the MINI series is perfect for your project:
- Flexible range of applications due to small installation space
- Lower operating costs due to minimal maintenance
- Wide range of applications with stainless materials
The MINI actuators: available in five sizes
MINI Actuators consist of a combination of spindle, nut, motor, and control devices, packaged in an optimized stainless steel or powder-coated housing. With this drive type, we rely on a PAN-bronze nut to maximize the MINI Actuator's lifespan. Additionally, MINI drives come standard with limit switches and safety limit switches to ensure timely shutdown at end positions. Thanks to the hollow shaft motor, the MINI Cylinder achieves its main advantage: minimal axial space requirement without sacrificing performance.
Here's an overview of our 5 sizes with a standard stroke of 300-500 mm and expandable with different connection heads and position switches:

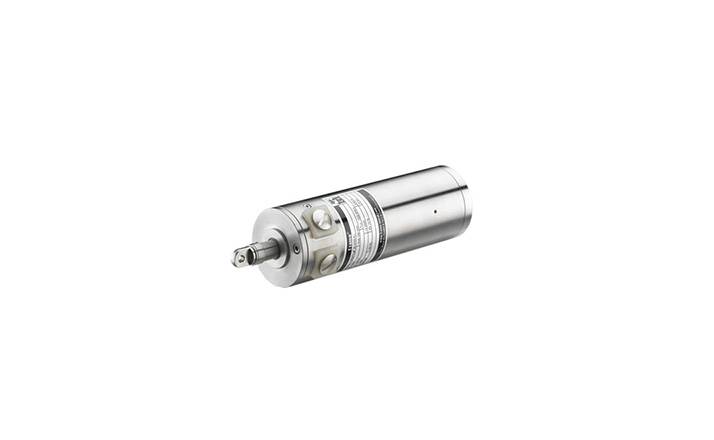

MINI 0
up to 1 kN and 30 mm/s

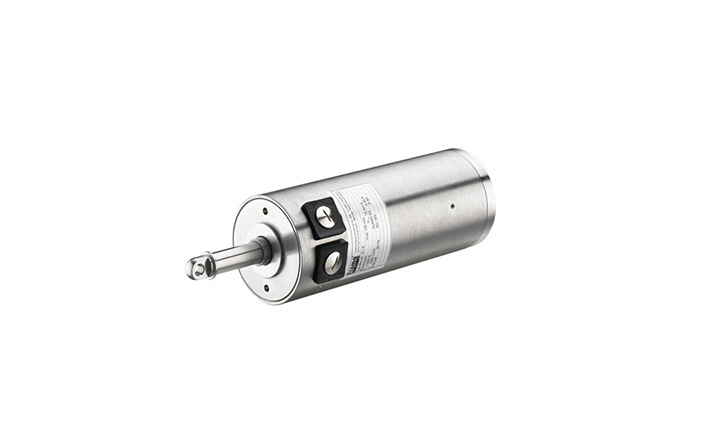

MINI 01
up to 1.6 kN and 130 mm/s

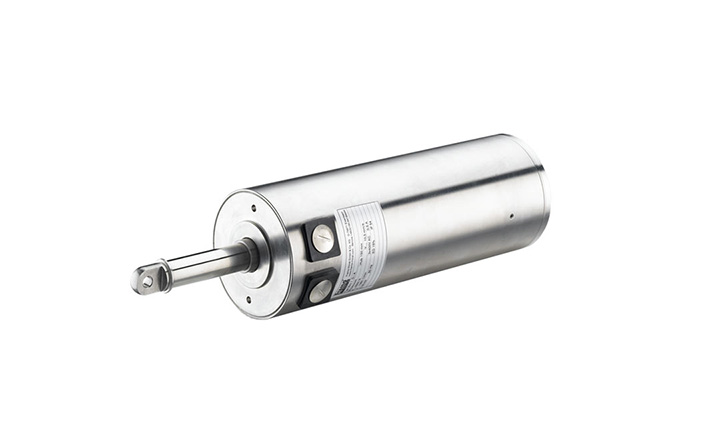

MINI 1
up to 3.5 kN and 136 mm/s
MINI 2
up to 14.6 kN and 49 mm/s

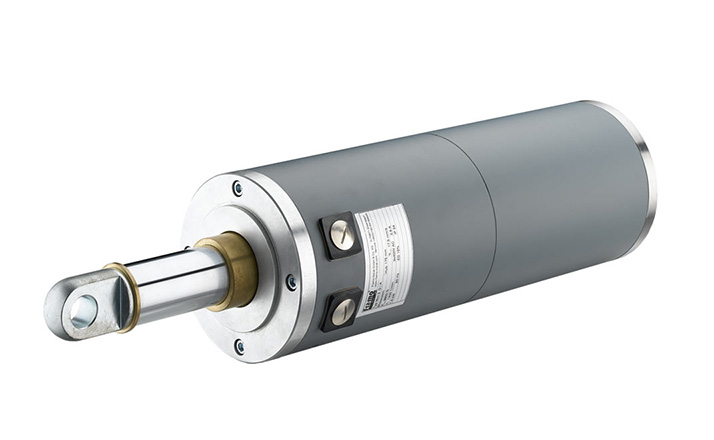

MINI 3
up to 26 kN and 29 mm/s
Your advantages
High performance, compact size
Thanks to the hollow shaft drive, the smallest MINI Cylinder (186 mm length) can exert up to 1,000 N of force to lower or lift loads.
Suitable for harsh conditions
Thanks to its stainless materials and IP65 protection rating, the MINI Actuator finds application not only in the food industry but also anywhere harsh conditions are present.
Variable power supply
In the standard configuration, different motors can be used. Voltage options include 24V DC, 1x230V AC, and 3x 230/400V AC. Special voltages for markets with different grid voltages can also be accommodated.
High hygiene requirements
The MINI Cylinder complies with EU Regulation (EC) No. 852/2004 on food hygiene. Its round, compact design prevents dirt pockets, and it can be easily cleaned, even with high-pressure hot water.
Lifetime lubricated
The MINI Actuator is equipped with lifetime lubrication, meaning it doesn't require any lubrication. This significantly reduces maintenance effort and saves valuable time, as regular re-lubrication isn't necessary.
Custom configuration
Thanks to a wide range of standard available options, the MINI drives cover a very broad range of applications. Possible options include potentiometers, encoders, limit switches, planetary gearboxes, force-dependent shutdown, and others.

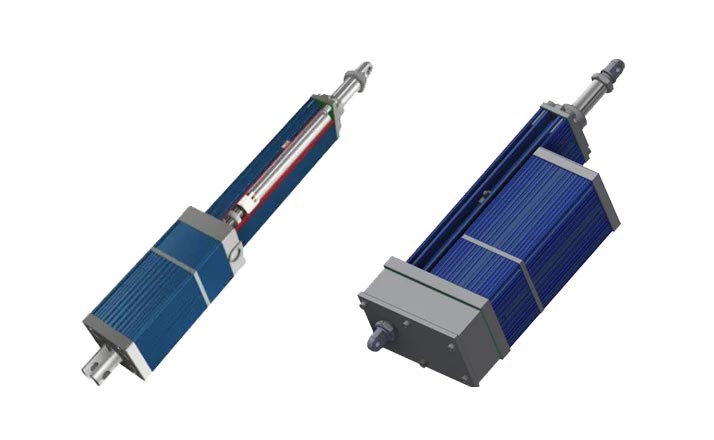

Electric Cylinder
Electric Cylinders are powerful drive solutions specifically designed for use in industrial applications. The drive mechanism of the Electric Cylinder is based on a powerful Screw Drive, available in numerous different diameters and pitch combinations.
You can choose between coaxial and parallel versions and from three different sizes each, which represent load capacities ranging from 3,000 N to 40,000 N. The integration of various safety-related options such as brakes, rotary encoders, potentiometers, or limit switches enables quick and easy installation into your system.
3 reasons why the Electric Cylinder is perfect for your project:
- "Plug and Play" solution even for complex requirements
- Long lifespan
- Space-saving with high power density

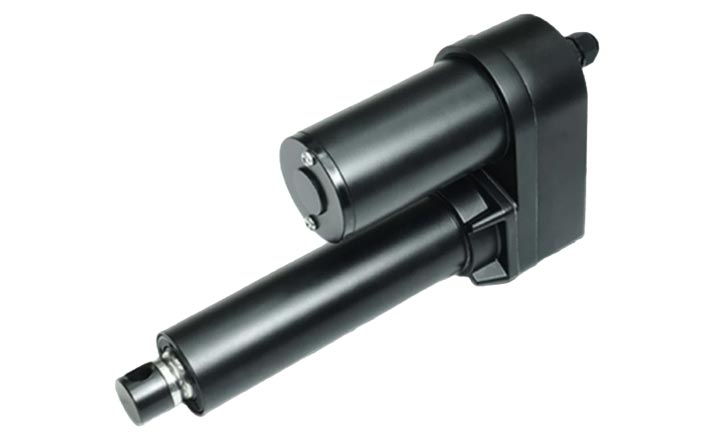

Linear Actuators 24V
Linear Actuators are a complement in our portfolio for lower load ranges from 50 kg to 600 kg and are typically equipped with a 24V DC motor and are ideally suited for all kinds of applications where tilt, lift, pull, or push movements with a certain force are required. Electric Linear Actuators are often the preferred solution when simple and clean motion is needed, which can be precisely and evenly controlled.
3 reasons why Linear Actuators are perfect for your project:
- Reduction of assembly costs
- Unlimited application range due to high protection rating
- Lower operating costs, because maintenance-free
For which application should we develop your linear drive?
Your advantages
Low Noise
This drive technology is based on the sliding bearing principle, resulting in reduced noise and vibrations. For you as the operator, the application with the linear unit is up to 4 times quieter.
Lubrication and maintenance-free
Linear Actuators require no external lubricants. Maintenance and associated costs are eliminated.
Cost-effective Drive Solution
Due to technical advantages such as lubrication and maintenance-free operation, not only do operating costs decrease, but Linear Actuators are also up to 30% cheaper than metallic alternatives.
Temperature resistant
Reliably withstands both extremely warm or cold environments: Linear Actuators can endure almost all conditions. We also offer linear units suitable for extreme temperatures ranging from -30°C (-22°F) to +180°C (356°F).
Customizable & ready-to-connect
Linear Actuators are available in various stroke lengths and are delivered ready for connection, guaranteeing significant time savings for you.
Your advantages
Low installation effort
Ready-to-install solution reduces assembly time, saves your working hours, and lowers operating costs.
Saves complex system design
As a compact fully integrated lifting unit, the lifting cylinder provides secure position measurement systems, which then don't need to be planned for separately in the system.
Adjusts continuously and independently of force
Encoders and potentiometers continuously provide the current lift position. This allows for easily programming precise intermediate positions, regardless of load fluctuations.
