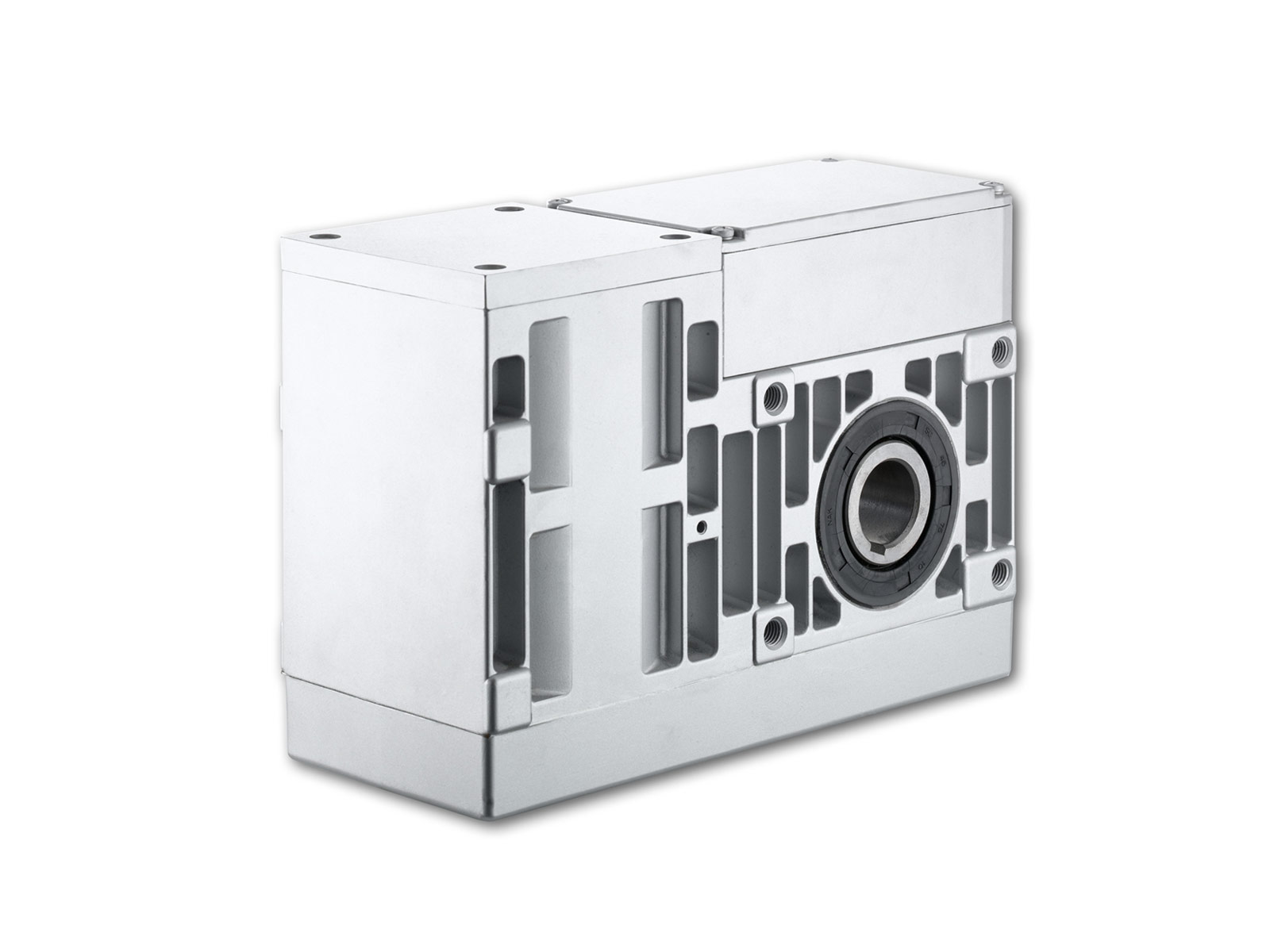

Compacta MR30
The Compacta MR30 slip-on geared motor offers output speeds ranging from 2.6 to 123.4 rpm and a nominal torque of up to 300 Nm in its preconfigured standard versions. Thanks to its compact design, the geared motor is ideal for reversing applications in tight spaces. In the standard version, the geared motors are splash-proof (IP54).
Standard version:
- 3-phase AC motor
- Terminal box
- Thermal protection
- IP 54
- Plastic 1st gear stage
MR30 standard versions
Article No.
Supply voltage
Line frequency [Hz]
Output speed rpm
Torque / Duty cycle
Datasheet
Circuit diagram
STEP file
6-30-GR-30E
24V DC
/
2
250 Nm / 20%
/
/
/
The Compacta product line includes three additional sizes MR6, MS12, and AG160, covering further standard variants with varying gear ratios, output speeds, and torque ranges.
If the predefined standard variants don’t include the right one for your application, we can create modified versions of the Compacta MR30 for larger quantities, based on our comprehensive modular principle.
Depending on the gear ratio, ranging from 22.7:1 to 265.6:1, output speeds from 2.6 to 123.4 rpm can be achieved. The geared motors can also optionally be designed to be splash-proof (IP65) and explosion-proof according to ATEX 95. Additional options significantly expand the range of possible applications.
For high-volume projects, we also offer design modifications and completely new custom-engineered solutions to tailor the geared motor to your specific requirements.
